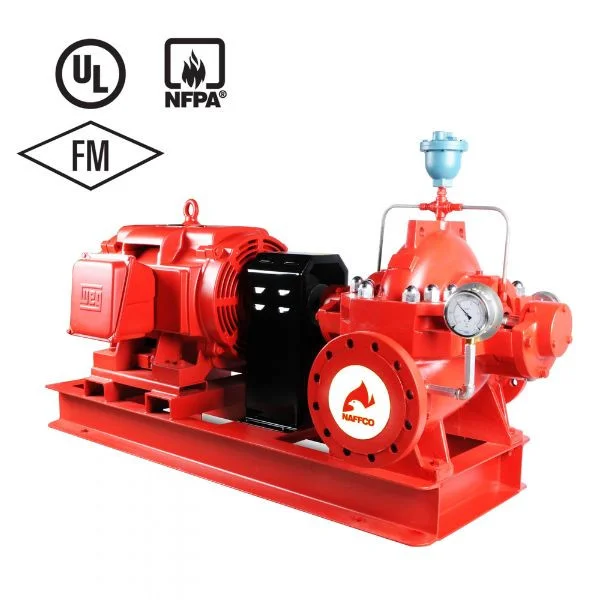

Axis Safety Engineering Ltd. provide NAFFCO’s UL listed and FM approved fire pumps with a reliable solution for your firefighting. We can offer you a complete package of services starting from engineering assistance to field start-up and periodic maintenance. Each pump set is tested in NAFFCO’s factory, prior to dispatch, as per UL, FM and NFPA standards. These pumps are covered by a warranty of one-year subject to standard terms and conditions.
FEATURES
Capable to supply additional accessories wherever required

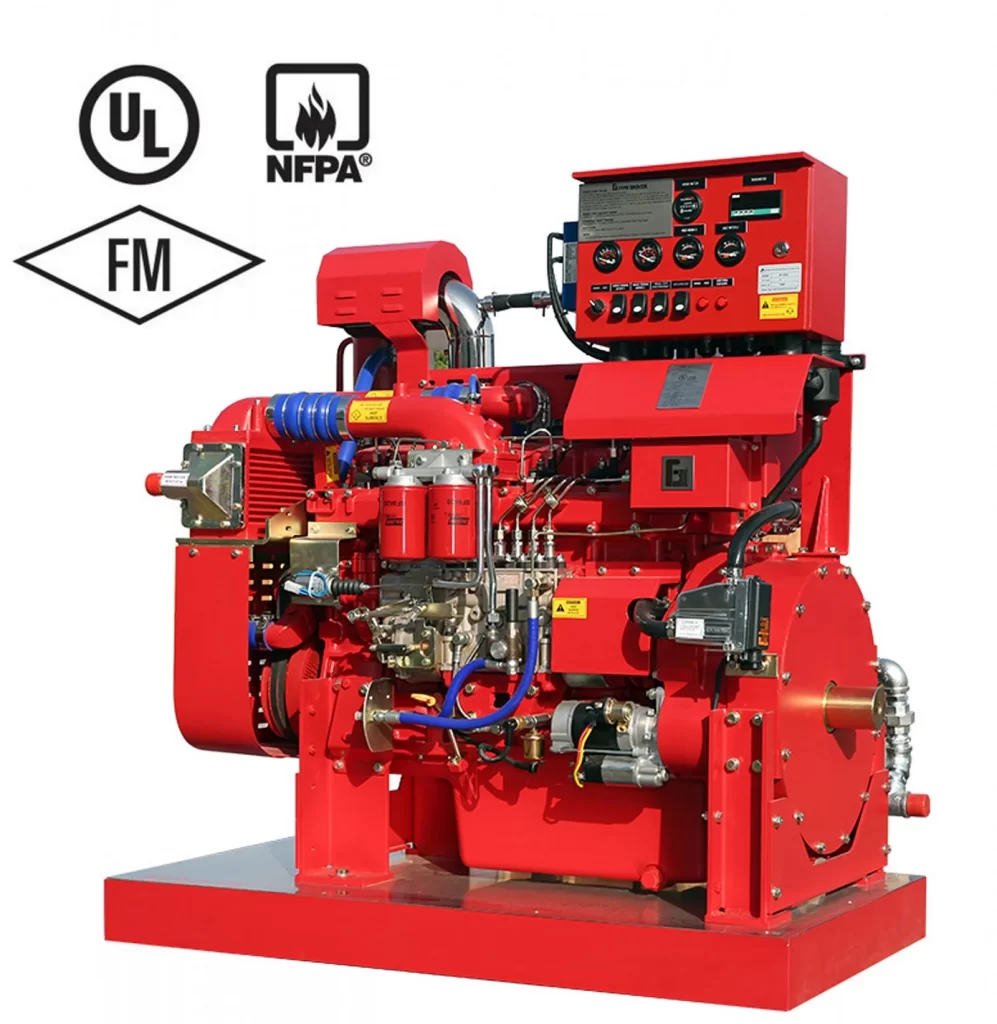

Fire Driver diesel engines are specifically designed and manufactured for firefighting applications according to UL 1247 standard. Fire pump engines are required to start immediately based on the system demand signals without any hindrance and these engines have been consistently proven reliable in meeting this criterion. The better torque characteristics of these engines ensure reliable operation in emergency conditions.
These engines are UL listed and comply with the requirements for diesel engine drives as detailed in NFPA 20.
FEATURES

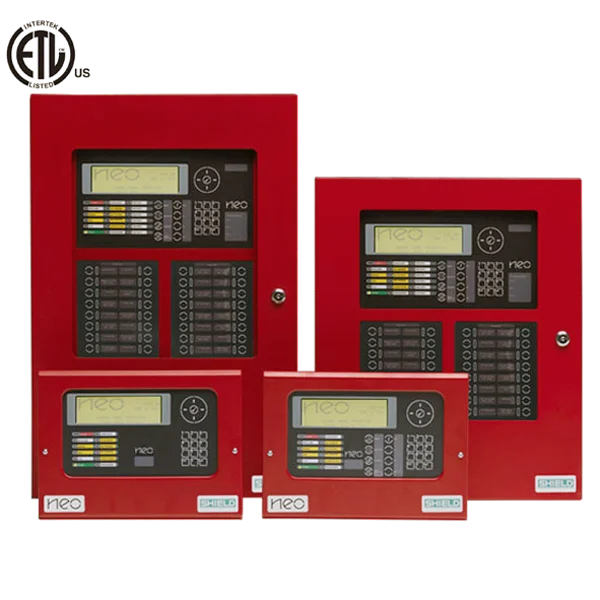

NEO control panels offer a scalable fire alarm solution for projects of any size. Built from decades of global expertise, they combine advanced power, performance, and ease of use. Featuring identical modules programmable via laptop tools, NEO reduces installation time, detects wiring/programming errors, and provides both local and remote diagnostics. With superior configuration, networking, and long-term reliability, NEO ensures exceptional fire detection without nuisance alarms.
Features
1, 2, or 4 SLC loops (126 devices each)
200 zones per panel / 1,000 when networked
Networking up to 200 nodes, peer-to-peer wire or fiber
Comprehensive network diagnostics & event reporting
Status monitoring from any panel/annunciator
Compatible with full NEO peripherals (annunciators, modules, printers, amplifiers, etc.)
Shielded or unshielded SLC wiring
Detectors, sounders & beacons powered directly from SLC
Superb noise immunity, sustained loop voltage during AC loss
Monitoring each sensor’s average value provides a continuously shifting reference point. A software filtering process compensates for environmental factors, such as dust and dirt, and component aging, to provide an accurate reference for evaluating new activity. This filtering reduces the probability of false or nuisance alarms caused by shifts in sensitivity, either up or down.
General Features

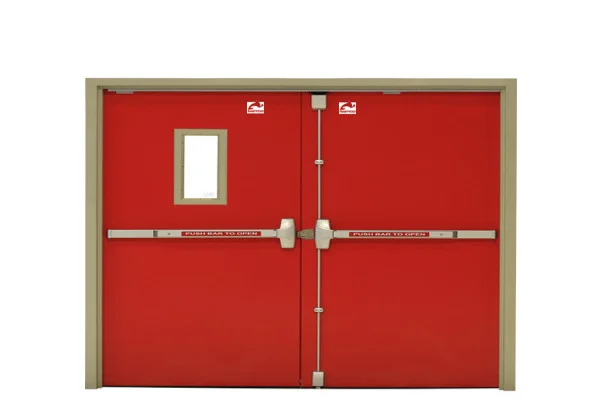

NAFFCO steel doors combine fire resistance with functionality, ensuring safety without compromising design. Built with strong steel frames, they prevent fire spread, enable safe egress, and provide maximum compartmentalization. As a leading manufacturer in Dubai and the MENA region, NAFFCO offers a wide range of fire-rated doors including glazed, panel, metal, acoustic, and security types. All doors comply with FAA flammability standards and international fire safety codes. Trusted for residential, commercial, and industrial applications, NAFFCO doors deliver unmatched protection, durability, and aesthetic finishes. Our technical team provides expert advice and planning support.
Specifications & Features
Sizes: Custom sizes available
Fire Rating: Up to 120 minutes
Vision Panels & Louvers: Optional, fire-rated options available
Door Types: Metal, interior, oak fire doors, acoustic, fireproof, exterior, commercial, security
Core Options: Honeycomb or mineral wool (rigid, fire-rated, acoustic)
Steel Stiffened Core: Maximum durability with vertical stiffeners & mineral wool insulation
Recommended Use: Residential, commercial, warehouses, government, healthcare, education, labor camps
Finishes: Polyester powder coated, epoxy powder coated, wood finish, stainless steel

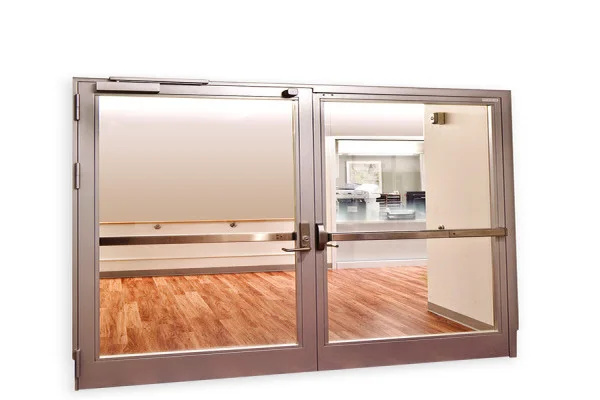

NAFFCO Glazed Doors combine aesthetics, safety, and performance—ideal for spaces requiring natural light, visibility, and fire protection. Designed for entrances, corridors, patios, and high-traffic areas, they create open, airy environments without compromising safety. Options include staircase doors, 90-minute fire-rated entry doors, and garage access doors. With certifications under UL and BS standards, NAFFCO glazed doors ensure durability, fire resistance, and style. Custom sizes, glazing, and finishes make them suitable for residential, commercial, and institutional use.
Specifications & Features
Fire Rating: Up to 180 mins (BS), 90 mins (UL)
Applications: Entrances, corridors, malls, hospitals, government & corporate buildings
Finishes: Polyester/epoxy powder coated, wood, stainless steel, decorative coat
Fire Standards: UL, BS 476 Part 22 [BM TRADA – QMARK]
Glazing Options: Multiple choices including FireliteNT (fire & impact safety rated)
Sizes & Handing: Fully customizable for property needs
Cementitious fire protection is normally spray applied using specialist equipment to protect structural steel or concrete from the effects of fire for a nominal fire resistance period.
Gypsum based sprays are sometimes considered as Cementitious and may be used internally in the same way as Portland cement sprays, though most gypsums are not suitable for external or semi-external locations.
The gypsum based fireproofing Cementitious paint has excellent physical properties for interior/architectural uses and Cementitious paint can give up to 4 hours fire protection.
Water-based fire-resistive coatings for interior and exterior steel structures
Certified under ANSI/UL 263 (ASTM E119) & BS 476 Part 21:1987
Fire resistance rating from R15 up to R180 minutes
Formulated with cement, vermiculite, asbestos-free fibers & special fire-protection materials
High adhesion, toughness & durability—ideal for buildings, petrochemical plants, and industrial equipment
NAFFCO Intumescent Fire Resistant Coatings are thin-film, paint-like coatings designed to protect structural steel in case of fire. When exposed to high temperatures, they expand to form an insulating barrier, delaying heat transfer and maintaining steel strength. Coating thickness typically ranges from 0.03–0.50 inches, providing fire protection of up to 120 minutes. Ideal for ensuring structural stability during fully developed fires, NAFFCO intumescent coatings are trusted for residential, commercial, and industrial buildings.
Specifications & Features
NAFFCO PSV-ISW-180 (Water-Based): For indoor use; BS 476 approved, Certifire CF 5627; fire rating R15–R180; non-VOC, halogen-free, borate-free, fibre-free; applied on primed steel surfaces with suitable topcoat.
NAFFCO PSV-ISS-120 (Solvent-Based): For internal/external steel; BS 476 approved, Certifire CF 5628; fire rating R30–R120; borate-free & silicone-free; expands under heat to form a protective insulating layer.

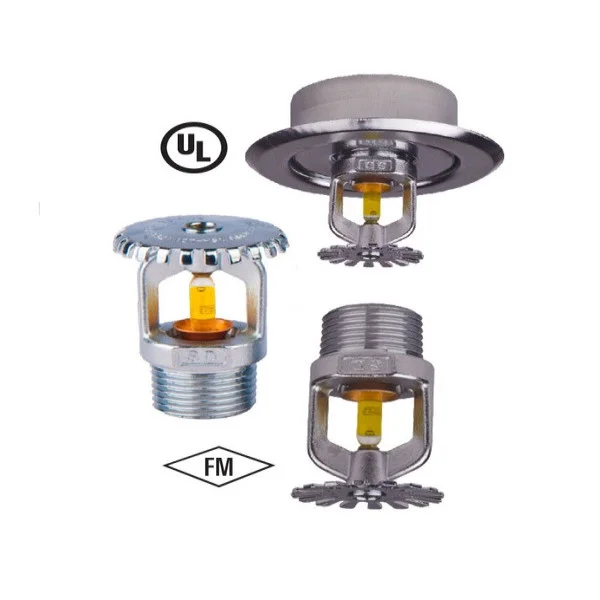

Axis Safety’s SHIELD Sprinklers (Models: SD1010, SD1015SR, SD1030, SD1032) are glass bulb type fire sprinklers available in upright, pendent, and recessed pendent styles. Designed with advanced frangible glass bulbs for standard or quick response, they ensure precise activation when fire temperatures are reached. With a K-factor of 5.6 gpm/psi½, they deliver efficient water discharge and reliable pressure performance. Featuring a forged, streamlined frame with hex-shaped wrenching for easy installation, these sprinklers are offered in multiple temperature ratings and finishes to suit diverse design needs. The recessed pendent option comes with an escutcheon providing up to ¾” adjustment, ensuring flexibility and functionality.
Specifications & Features
Models: SD1010, SD1015 (5mm bulb), SD1030, SD1032 (3mm bulb)
Style: Upright (SD1015, SD1032), Pendent/Recessed Pendent (SD1010, SD1030)
Finish: Natural, Chrome
K-Factor: 5.6 gpm/psi½ (80 lpm/bar½)
RTI: Standard 90 (m.s)½; Quick Response 33 (m.s)½
Thread Size: ½” NPT (15mm) | Orifice: 13mm
Pressure: Max 175 PSI (1200 kPa); Min 7 PSI (48 kPa)
Factory Test: 100% hydrostatic at 500 PSI (3450 kPa)
The NAFFCOInert® Fire Suppression System is an engineered clean agent solution with fixed nozzles and a pipe network, designed per NFPA 2001 for Class A, B, and C fires. It works by reducing oxygen to non-combustible levels and can be actuated automatically via detection and control or manually when required. Ideal for sensitive environments, it is a safe Halon 1301 alternative. Common applications include data centers, telecom facilities, control rooms, libraries, museums, medical facilities, and military sites. With pressure regulator technology, it ensures safer discharge, prevents freeze-up, lowers installation costs, simplifies venting, and allows easy recharge and maintenance.
Specifications & Features
Agents: IG-01 (Argon), IG-100 (Nitrogen), IG-55 (N₂/Ar mix), IG-541 (N₂/Ar/CO₂ mix)
Fire Rating: Suitable for Class A, B, C fires; NFPA-compliant concentrations ~37–39%
Safety: NOAEL ~43%, LOAEL ~52–53%
Performance: Flooding factor ~0.457–0.481 m³/m³; discharge within 60 seconds
Benefits: Electrically non-conductive, residue-free, easy maintenance, safe for people & assets
