Cleanroom Panels

All Products

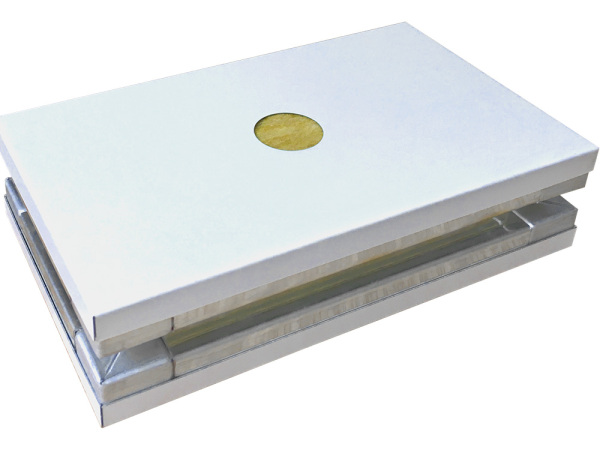

50mm Metal Cleanroom Panel Handmade, Rock Wool, Customizable

Coating

PE, PVDF, Antistatic, Stainless Steel, HDP And PVC Coating etc.

Panel Frame

0.8mm, Galvanized Steel

Corner Connection

1.0mm, Galvanized Steel

Fire Resistance

1.0h

Connection Type

Aluminum Joint Type, Continuous Type

Lead Time

15 Days After Design Confirmed

Shipment Method

By Sea

Payment Term

TT/LC; CAD, Cash

100mm Clip Cleanroom Panel Handmade, Gypsum Board

Coating

PE, PVDF, Antistatic, Stainless Steel HDP And PVC Coating Etc.

Panel Frame

1.2mm

Fire Resistance

1.0h/4.0h

Connection Type

Keel Construction, Spring Buckle

Lead Time

15 Days After Design Confirmed

Shipment Method

By Sea

Payment Term

TT/LC; CAD, Cash

Cleanroom Steel Door

Door Frame

1.5mm Galvanized Steel

Door Leaf

1.0/1.2mm Galvanized Steel

Insulation Material

Paper Honeycomb/ Alu. Honeycomb / Rockwool

Window On The Door

Double Layered With Square Or Round Corner;
Window Size:500*800mm, Customizable;
Window Color:black Or White ;
Glass:t=5mm Tempered Glass (Can Be Fireproof);
N2 Gas And Desiccant Inside

Applications

Pharmaceuticals, Semiconductor Industry, Research Laboratories,

Assembly And Testing Facilities, Food And Beverage Industry

Lead Time

15 Days After Design Confirmed

Shipment Method

By Sea

Payment Term

TT/LC; CAD, Cash

50mm Metal Cleanroom Panel Machine Made

50mm Metal Cleanroom Panel Machine Made

Coating

PE

Cleanroom Window

Thickness

50mm / 75mm / 100mm (Other Size Available)

Glass Type

Tempered Glass; Fireproof Glass

Protection

Nitrogen Gas With Desiccant

Lead Time

15 Days After Design Confirmed

Shipment Method

By Sea

Payment Term

TT/LC; CAD, Cash

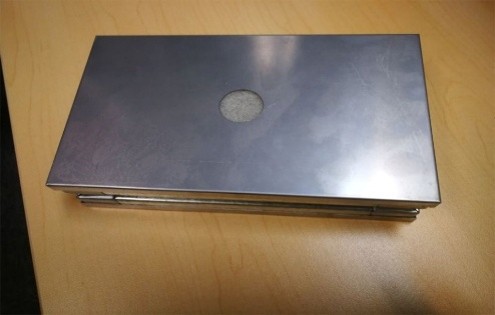

Handmade Sandwich 304 Stainless Steel Panel

Handmade Sandwich 304 Stainless Steel Panel

Coating:
Stainless Steels

Insulation material:
Rock Wool/Paper Honeycomb/Aluminium Honeycomb/EPS/PU/PIR

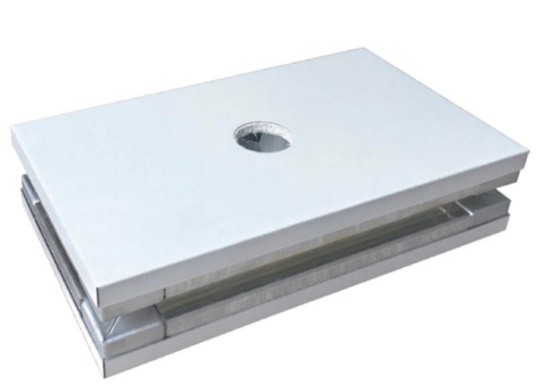

50mm Metal Cleanroom Panel Handmade, PU/EPS/PIR

50mm Metal Cleanroom Panel Handmade, PU/EPS/PIR

Coating: PE, PVDF, Antistatic, Stainless Steel, HDP And PVC Coating etc.

Panel Frame: 0.8mm, Galvanized Steel

Corner Connection: 1.0mm, Galvanized Steel

Fire Resistance: 30 minutes

Connection Type: Aluminum Joint Type, Continuous Type

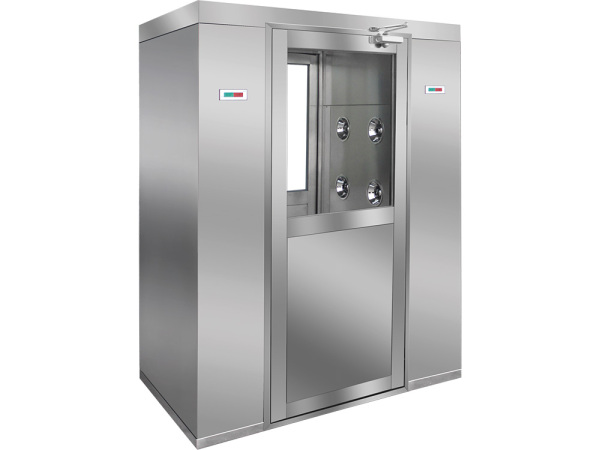

Air Shower for Personnel / for Material

Air shower for personnel / for material series products are a purification equipment with strong versatility. They are generally installed between cleanroom and non-cleanroom. They are the passages for people or materials to enter the cleanroom. The clean air that is blown out can remove the dust carried by people and materials, and it can effectively block or reduce the dust source from entering the clean area . The front and rear doors of the air shower for personnel / for material are equipped with interlocks, which can also act as an air lock to prevent unpurified air from entering the clean area. The equipment is widely used in the fields of food, medicine, biological engineering and microelectronics, etc.

Class A Laminar Air Flow

Class A laminar air flow is an air purification equipment that provides Class A unidirectional flow and creates a local high cleanliness environment. Its working principle is to pass the air through the HEPA filter at a certain wind speed, and the pressure is equalized by the unidirectional membrane so that the clean air is unidirectionally flowed to the working area.


Class A laminar air flow can be used singly or in combination. The working area of Class A laminar air flow is the core sterile area, the operators need to open the equipment from the class-B area environment according to the defined SOP to carry out process operation and intervention. These actions need to be formulated according to the risk of the product. The operator should avoid contacting with the core sterile area. If contact is needed, it should be done through isolation gloves or body suit.

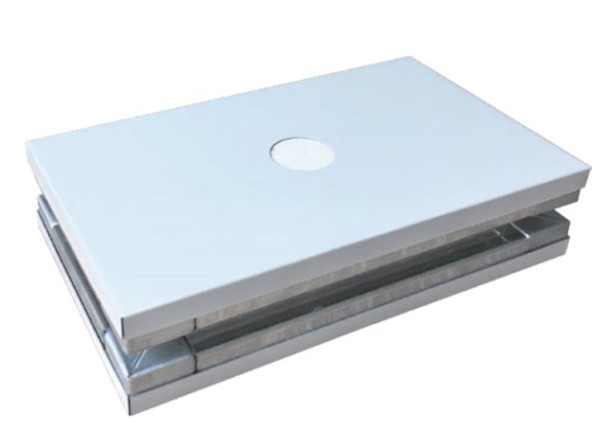

50mm Metal Cleanroom Panel Handmade, Magnesium Oxysulfide

50mm Metal Cleanroom Panel Handmade, Magnesium Oxysulfide

Coating: PE, PVDF, Antistatic, Stainless Steel, HDP And PVC Coating Etc.

Panel Frame: 0.8mm, Galvanized Steel

Corner Connection: 1.0mm, Galvanized Steel

Fire Resistance: 1.0h

Connection Type: Aluminum Joint Type, Continuous Type

100mm Metal Cleanroom Panel Handmade, Gypsum Board

100mm Metal Cleanroom Panel Handmade, Gypsum Board


Coating

PE, PVDF, Antistatic, Stainless Steel HDP And PVC Coating Etc.

Panel Frame

1.0mm

Corner Connection

1.0mm, Galvanized Steel

Connection Type

Aluminum Joint Type



And More...

Contact Us to know more.
